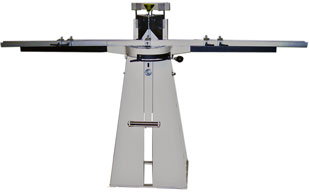

Morso Model NM Notch Cutting Machines

Morso NM Notch Cutting Machine is a foot-operated notch cutting machine for cutting window bars, Georgian style windows, mullions, and cabinet front frames requiring haunch joints.

The Morso NM is a low cost version of the popular Morso NF, and the Morso NM is a little ligther built, for example is the extension arms on both sides bended steel plates and not cast iron tables as on the Morso NF. However the Morso NM is ideal for the small production, which have a need for a machine, but use it maybe less than one hour a day.

Morso NM leaves the cut surface of the wood perfectly smooth and accurate, requiring no further preparation before joining. The horizontal movement of the knife block is stepwise adjustable.

The fences, left and right, with the adjustable stops ensure correct work. The special lever system of the machine ensures a very easy operation.

Twin return springs automatically bring the knives back to starting position.

  • a clean and constantly accurate cut will be produced with Morso NM,
  • the Morso NM, produces no dust and therefore requires no extraction,
  • the Morso NM, require less than 15 minutes to change the cutting blades, to the set-up, and to the positioning of the stops,
  • as the blades wear the 45 degree angle remains unchanged, ensuring consistently accurate joints,
  • the Morso NM cuts plastic, all kinds of wood including MDF.
Morso Model NM Notch Cutting Machines

Morso NM is delivered with:

  • safety guard,
  • 2 sliding longitudinal stops,
  • fences on both the right and the left side of the machine,
  • 1 nose knife (size per request),
  • 1 pair of side knives.
Technical data for
Morso Notch Cutting Machines Model NM
Nose widths NMS 6 - 12 mm
Nose widths NML 12 - 20 mm
Cutting width, max. 115 mm
Cutting height, max. 85 mm
Fences, left and right 800 mm
Extension tables, left and right 478 mm
Sliding stop, left and right 1 pce
Net weight 50 kg
US PATENT NO'S.: US 6,675,686 BZ - US 6,941,848 BZ
EUROPEAN NO.: 00610130.7-2316

Technical alterations without prior notice reserved.
