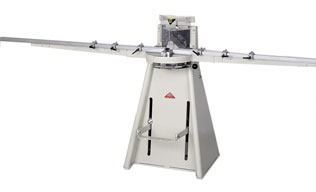

Morso Model NF Notch Cutting Machine

Morso Model NF is a foot operated guillotine for cutting window bars, mullions and cabinet front frames requiring haunch joints.

Morso Model NF leaves the cut surface of the wood perfectly smooth and accurate, requiring no further preparation before joining. The horizontal movement of the knife block is stepwise adjustable.

The fences, left and right, with adjustable stops ensure correct work. The special lever system of the machine ensures a very easy operation. Twin return springs automatically brings the knives back to starting position.

To compare Morso Model NF with a moulding machine, the following points must be considered:

  • a cleaner and more constantly accurate cut will be produced with Morso Model NF,
  • the Morso Model NF produces no dust and therefore requires no extraction,
  • the Morso Model NF requires less than 15 minutes to change the cutting blades and set-up,
  • as the blades wear, the 45° angle remains unchanged, ensuring consistently accurate joints,
  • the Morso Model NF cuts plastic, all kind of wood, including MDF.

The Morso Model NF is delivered with:

  • safety guard,
  • waste chute,
  • 6 sliding longitudinal stops,
  • fences on both left and right hand side of the machine,
  • 1 nose knife ( size per request ),
  • 1 pair of side knives.

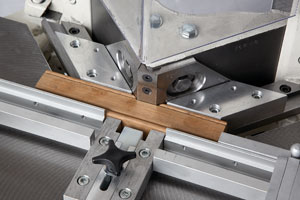

Cut made on Morsø NF machine with 20 mm nose knife. Size of nose knife is available in metric and inches from 4 mm up to 26 mm. Larger sizes upon request.

Morso Model NF Notch Cutting Machine

The previous cut end piece fits 100% to this cut. No gaps will be seen.

Morso Model NF Notch Cutting Machine

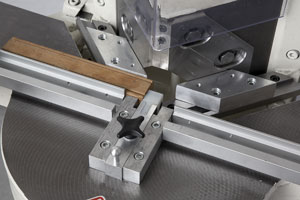

Workpiece placed correctly against center stop.

Morso Model NF Notch Cutting Machine

Technical data for
Morso Model NF Notch Cutting Machine
Nose width ( Morso NSF ) 6 - 20 mm
Nose width ( Morso NLF ) 12 - 26 mm
Cutting width, max. 70 mm
Cutting height, max. 160 mm
Fences, left and right 1,500 mm
Extension tables, left and right 1,000 mm
Net weight 100 kg

Morso Model NF Notch Cutting Machine

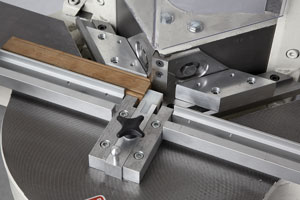

First corner is cut - NO DUST.

Morso Model NF Notch Cutting Machine

Work piece is moved to opposite side, placed against center stop and second corner is cut. The finished result fits 100% in the frame without further preparations.



Technical alterations without prior notice reserved.
