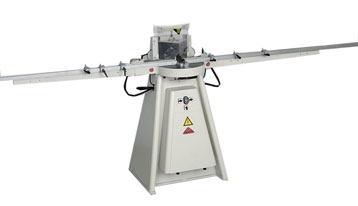

Morso Model NEH Notch Cutting Machine

Morso Model NEH notch cutting machine is an electronic/pneumatic guillotine for cutting window bars, mullions and cabinet front frames requiring haunch joints.

Morso Model NEH is a machine designed for medium to high volume production - the noise level is below 70 db.

The Morso Model NEH will cut plastic, all kinds of wood, including MDF. The Morso Model NEH operates in principle the same as Morso Model NF. The advantage with the NEH model is its ease of use.

The hydraulic cutting action is activated by the operation of dual-hand control, ensuring total safety.

The Morso Model NEH is available with either single or three-phase motor, and voltage at request.

To compare Morso Model NEH with a moulding machine, the following points must be considered:

  • cleaner and more constantly accurate cut will be produced with Morso Model NEH,
  • the Morso Model NEH is almost silent by comparison,
  • the Morso Model NEH produces no dust and therefore requires no extraction,
  • the Morso Model NEH requires less than 15 minutes to change the cutting blades, to set-up, and to the positioning of the stops,
  • as the blades wear, the 45° angle remains unchanged, ensuring consistently accurate joints.

The Morso Model NEH is supplied with the same standard equipment as the Morso Model NF, plus it has:

  • automatic cutting cycles for both large and small work pieces - which means that the machine always does the trim cut which is very important,
  • adjustable length of stroke ( 2 positions ) - when using the lowest cutting position the cutting cycle of two cuts only takes between 1 and 1.5 seconds.

Cut made on Morsø NEH machine with 20 mm nose knife. Size of nose knife is available in metric and inches from 4 mm up to 26 mm. Larger sizes upon request.

Morso Model NEH Notch Cutting Machine

The previous cut end piece fits 100% to this cut. No gaps will be seen.

Morso Model NEH Notch Cutting Machine

Workpiece placed correctly against center stop.

Morso Notch Cutting Machines Model NEH

Technical data for
Morso Model NEH Notch Cutting Machine
Nose width ( Morso NSEH ) 6 - 20 mm
Nose widths ( Morso NLEH ) 12 - 26 mm
Cutting width, max. 70 mm
Cutting height, max. 140 mm
Fences, left and right 1,500 mm
Extension tables, left and right 1,000 mm
Motor, single or three phase 1.1 kW
Working pressure 80 bar
Pumping capacity 7 litre/min
Power transmission 660 kg
Tank contents 8 litre
Net weight 145 kg

Morso Model NEH Notch Cutting Machine

First corner is cut - NO DUST.

Morso Model NEH Notch Cutting Machine

Work piece is moved to opposite side, placed against center stop and second corner is cut. The finished result fits 100% in the frame without further preparations.






Technical alterations without prior notice reserved.
