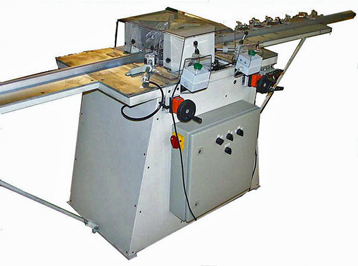

Morso Model ND Notch Cutting Machine

Morso Model ND notch cutting machine is an electronic/pneumatic guillotine for cutting window bars, mullions and cabinet front frames requiring haunch joints.

The Morso Model ND pneumatic cutting action is activated by the operation of dual-hand control, ensuring total safety. With Morso Model ND you can constantly achieve the clean smooth cuts. When both buttons are activated, each side of the profile is cut simultaneously. The profile requires no further preparation before joining.

The sliding stops on the right hand fence are pneumatically operated. They are activated from the operator's control panel. This ensures exact work.

To compare Morso Model ND with a moulding machine, the following points must be considered:

  • a cleaner and more constantly accurate cut will be produced with Morso Model ND,
  • the Morso Model ND cuts both sides simultaneously - this operation is more than twice as quick,
  • the end pieces can be cut,
  • the Morso Model ND produces no dust and therefore requires no extraction,
  • the Morso Model ND requires less than 15 minutes to change the cutting blades, to the set-up, and to the positioning of the stops,
  • as the blades wear, the 45° angle remains unchanged, ensuring consistently accurate joints.

The Morso Model ND will cut plastic, all kind of wood, including MDF, hardwood such as mahogany, oak, etc.

The Morso Model ND is delivered with:

  • safety guard,
  • waste chute,
  • sliding longitudinal stops,
  • fences on left and right hand side of the machine,
  • 1 nose knife ( size per request ),
  • and 1 pair of side knives.
Morso Notch Cutting Machines Model ND

Technical data for
Morso Model ND Notch Cutting Machine
Nose widths 6 - 20 mm
Cutting width, max. 60 mm
Cutting height, max. 2,100 mm
Fences, left and right 2,100 mm
Extension tables, left and right 1,500 mm
Air pressure 6 - 8 bar
Air consumption per cycle variable 28 - 48 litre
Net weight 301 kg

Finished product made by Morso Model ND.


Technical alterations without prior notice reserved.
