Dan-List Dowel Boring Machine Model BASP 1700

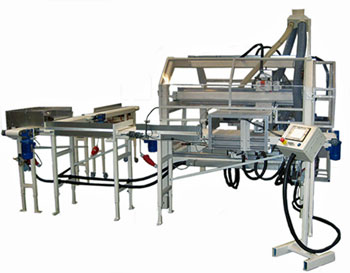

Dan-List BASP 1700 is a semi-automatic dowel boring machine. The machine has infeed conveyor which takes the work pieces directly from cutting unit. The cutting unit delivers 5 pieces per cycle and the pieces are then automatically separated before entering the Dan-List BASP 1700. Dan-List BASP 1700 has two separate working stations and a stacking unit for the finished pieces.

It is a compact and solid machine which works standard with five adjustable boring units for end and top borings (more can be added upon request).

The Dan-List BASP 1700 has a simple but flexible design, based on a traditional, very strong and solid machine frame, including safety guards and is quite simply built to last.

Dan-List BASP 1700 is a solid, reliable and efficient dowel boring machine, which guarantees a trouble free production run.

The machine is ideal for drawer sides and fronts, but is very flexible and can be used for other components as well.

Due to the special construction with two working stations, the Dan-List BASP 1700 has a very high capacity – up to 900 - 1.000 work pieces per hour.

Equipment:

Standard the Dan-List BASP 1700 is equipped as follows:

  • 1 pcs infeed conveyor, including separation of workpieces,
  • 2 pcs boring units for boring from the ends,
  • 3 pcs boring units for boring from the top,
  • 4 pcs clamping cylinders,
  • Stacking unit for 20 work pieces.

The boring unit revolve 90° around its own axis, and the boring head itself, revolve 360° around its own axis.

Safety:

As safety for the operator is a keyword on all Dan-List machines, all safety guards which can be opened contain safety switches so if the operator accidently opens a safety guard during production the machine stops.

Or if a safety guard has not been closed properly after set up, the machine will not start.

All safety features are monitored in the PLC control, and can be seen on the touch screen, if any safety devices are activated.

It is impossible for the operator to access the machine in any way during production.

PLC:

The PLC contains many features, for example:

  • On/off function for each boring unit,
  • Time controlled cleaning function of drilling,
  • Programmable counter,
  • Adjustable time for air blowing of drilled work pieces,
  • Adjustable speed of infeed pusher,
  • Adjustable injection time for glue injectors, to secure the correct amount of glue in each hole,
  • Control of dowel insert units,
  • Touch screen in English ( also available in local language ),
  • Possibility to add Ethernet connection in order to access the PLC online from our factory,
  • Individual requests,
  • And more.

Please contact us for specifications.

Dan-List Dowel Boring Machine Model BASP 1700

Working Procedure:

The working cycle of Dan-List BASP 1700 is the following:

  1. Choose which drilling units should be activated and which should be deactivated,
  2. Start the machine,
  3. The infeed conveyor takes the workpieces from the cutting unit,
  4. The workpieces are separated and pushed into the machine and clamped pneumatically,
  5. In the first working station the work piece is drilled from the ends,
  6. Then the work piece is moved to second working station where it is drilled from the top,
  7. The finished work piece is then moved to an automatic stacking unit with a capacity of up to 20 work pieces. Individual delivery systems such as through feed system, delivery back to operator, but next to the machine on runners etc. are also available.

As the machine always works with items in each of the two working stations, this increases the capacity significantly compared to a traditional dowel boring machine with only one working station. This is especially very useful for cross drillings to avoid collision

Set-up:

The set-up of the machine is easy and operator friendly.

The operator loosen two handles on the carriers for the boring units, slide the boring units to correct position and lock the handles again.

Each boring unit has a digital reader so correct position is easily found.

Individual requests for set up is also available, see other alternatives here.

Video Presentation:

For video presentation, please click here.

Dan-List BASP 1700 is CE approved.

Recommended technical data for
Dan-List Dowel Boring Machine Model BASP 1700
Individual sizes of work pieces by request
Capacity 1000/900 items per hour
Length of items, max. 1,000 mm
Length of items, min. 250 mm
Boring depth, max. 100 mm
Consumption per boring unit 1.1 kW @ 2,850 rpm
Sliding mechanism air with oil-damping
Air pressure 6 - 8 bar
Air consumption 0.5 litre per working cycle
Machine length 1,700 mm
Machine width 2,200 mm
Machine height 1,800 mm
Machine weight 2,000 kilos


Technical alterations without prior notice reserved.
