Dan-List Dowel Boring Machine Model BADSP 2200
Dan-List BADSP 2200 is a semi-automatic dowel boring machine with automatic glue and dowel insert. The machine has a hopper feed and three separate working stations.
It is a compact and solid machine which works standard with two adjustable boring units for end borings (more can be added upon request).
The Dan-List BADSP 2200 has a simple but flexible design, based on a traditional, very strong and solid machine frame, including safety guards and is quite simply built to last.
Dan-List BADSP 2200 is a solid, reliable and efficient dowel boring machine, which guarantees a trouble free production run.
The machine is ideal for all simple components which needs end drillings and automatic dowel insert.
Due to the special construction with three working stations, the Dan-List BADSP 2200 has a very high capacity – up to 1.000 work pieces per hour.
Equipment:
Standard the Dan-List BADSP 2200 is equipped as follows:
- 1 pcs horizontal infeed magazine. Hopper feed,
- 2 pcs boring units for boring from the ends,
- 2 pcs glue injectors,
- 2 pcs dowel insert units,
- 6 pcs clamping cylinders,
- Delivery system return to operator, underneath the infeed magazine. Dan-List BADSP 2200 can also be delivered as a through feed machine or with a delivery system back to operator, but next to the machine.
The boring unit revolve 90° around its own axis, and the boring head itself, revolve 360° around its own axis.
Safety:
As safety for the operator is a keyword on all Dan-List machines, all safety guards which can be opened contain safety switches so if the operator accidently opens a safety guard during production the machine stops.
Or if a safety guard has not been closed properly after set up, the machine will not start.
All safety features are monitored in the PLC control, and can be seen on the touch screen, if any safety devices are activated.
It is impossible for the operator to access the machine in any way during production.
PLC:
The PLC contains many features, for example:
- On/off function for each boring unit,
- Time controlled cleaning function of drilling,
- Programmable counter,
- Adjustable time for air blowing of drilled work pieces,
- Adjustable speed of infeed pusher,
- Adjustable injection time for glue injectors, to secure the correct amount of glue in each hole,
- Control of dowel insert units,
- Touch screen in English ( also available in local language ),
- Possibility to add Ethernet connection in order to access the PLC online from our factory,
- Individual requests,
- And more.
Please contact us for specifications.

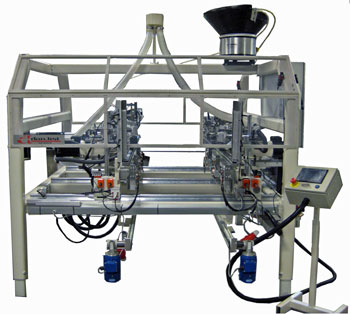

![Dan-List Dowel Boring Machine Model BADSP 2200](images/dowel_badsp_2200.jpg)
Working Procedure:
The working cycle of Dan-List BADSP 2200 is the following:
- Place the work pieces in the magazine,
- Choose which drilling units should be activated and which should be deactivated,
- Start the machine,
- The work pieces are pushed into the machine and clamped pneumatically,
- In the first working station the work piece is drilled from the ends,
- Then the work piece is moved to second working station where the glue is injected,
- In third working station, the dowels are inserted,
- The finished work piece is then returned to operator underneath the magazine. Individual delivery systems such as through feed system, delivery back to operator, but next to the machine on runners, various stacking systems etc. are also available.
As the machine always works with items in each of the three working stations, this increases the capacity significantly compared to a traditional dowel insert machine.
The Dan-List BADSP 2200 has a capacity of up to 1.000 work pieces per hour.
Set-up:
The set-up of the machine is easy and operator friendly.
The operator loosen two handles on the carriers for the boring units, slide the boring units to correct position and lock the handles again.
Each boring unit has a digital reader so correct position is easily found.
Individual requests for set up is also available, see other alternatives here.
Video Presentation:
For video presentation, please click here.
Dan-List BADSP 2200 is CE approved.
Recommended technical data for Dan-List Dowel Boring Machine Model BADSP 2200 Individual sizes of work pieces by request |
|
Capacity | 1000/800 items per hour |
Length of items, max. | 1,600 mm |
Length of items, min. | 190 mm |
Boring depth, max. | 100 mm |
Consumption per boring unit | 1.1 kW @ 2,850 rpm |
Sliding mechanism | air with oil-damping |
Air pressure | 6 - 8 bar |
Air consumption | 0.5 litre per working cycle |
Machine length | 2,200 mm |
Machine width | 2,400 mm |
Machine height | 1,800 mm |
Machine weight | 2,000 kilos |
