Dan-List Dowel Boring Machine Model BA 2800
Dan-List BA 2800 is a semi-automatic dowel boring machine with hopper feed.
It is a compact and solid machine which works standard with six adjustable boring units (more can be added upon request). The Dan-List BA 2800 has a simple but flexible design, based on a traditional, very strong and solid machine frame, including safety guards and is quite simply built to last.
Equipment:
Standard, the Dan-List BA 2800 is equipped as follows:
- 2 pcs boring units for boring top/bottom,
- 2 pcs boring units for boring from the side,
- 2 pcs boring units for boring end/in,
- 4 pcs clamping cylinders,
- Delivery system return to operator.
The boring unit revolve 90° around its own axis, and the boring head itself, revolve 360° around its own axis.
Dan-List BA 2800 is a solid, reliable and efficient dowel boring machine for boring of sides of beds, closets, windows, etc.
![Infeed and delivery return to operator.](images/dowel_ba_2800_18.jpg)
Infeed and delivery return to operator.
Delivery system can be made as per request.
Safety:
As safety for the operator is a keyword on all Dan-List machines, all safety guards which can be opened contain safety switches so if the operator accidently opens a safety guard during production the machine stops.
Or if a safety guard has not been closed properly after set up, the machine will not start. All safety features are monitored in the PLC control, and can be seen on the touch screen, if any safety devices are activated. It is impossible for the operator to access the machine in any way during production.
PLC:
The PLC contains many features, for example:
- On/off function for each boring unit,
- Time delay for cross drillings in order to avoid collision for horizontal and vertical drillings,
- Time controlled cleaning function of drilling,
- Programmable counter,
- Adjustable time for air blowing of drilled work pieces,
- Adjustable speed of infeed pusher,
- Touch screen in English ( also available in local language ),
- Individual request can also be added.
Working Procedure:
The working cycle of Dan-List BA 2800 is the following:
- Place the work pieces in the magazine,
- Start the machine,
- The items are pushed into the working station, clamped pneumatically and drilled,
- When finished the work pieces are returned to operator below the infeed magazine. ( Individual delivery systems available ).

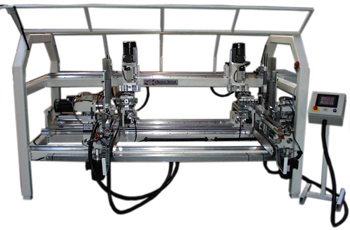

![Dan-List Dowel Boring Machine Model BA 2800](images/dowel_ba_2800.jpg)
Capacity is typically from 800 – 1100 work pieces per hour. Depending on cross drillings.
![Infeed and delivery return to operator.](images/dowel_ba_2800_19.jpg)
Programmable from PLC to avoid collision.
Set-Up:
The set-up of the machine is easy and operator friendly. The operator loosen two handles on the carriers for the boring units, slide the boring units to correct position and lock the handles again.
Each boring unit has a digital reader so correct position is easily found.
Individual requests for set up is also available, see other alternatives here.
Video Presentation:
For video presentation, please click here.
Dan-List BA 2800 is CE approved.
Technical data for Dan-List Dowel Boring Machine Model BA 2800 |
|
Capacity | 1,000/800 items per hour |
Length of items, max. | 2,200 mm |
Length of items, min. | 190 mm |
Standard boring depth, max. | 100 mm |
Consumption per boring unit | 1.1 kW @ 2,850 rpm |
Sliding mechanism | air with oil-damping |
Air pressure | 6 - 8 bar |
Air consumption | 0.5 liter per working cycle |
Length | 2,800 mm |
Width | 1,300 mm |
Height | 1,800 mm |
