Dan-List Dowel Boring Machine Model BA 2600
Dan-List BA 2600 is a semi-automatic dowel boring machine with hopper feed and three separate working stations.
It is a compact and solid machine which works standard with eight adjustable boring units (more can be added upon request).
The Dan-List BA 2600 has a simple but flexible design, based on a traditional, very strong and solid machine frame, including safety guards and is quite simply built to last.
Dan-List BA 2600 is a solid, reliable and efficient dowel boring machine for bed sides, legs and other kind of work pieces for any type of bed.
Equipment:
Standard the Dan-List BA 2600 is equipped as follows:
- 1 pcs horizontal infeed magazine. Hopper feed,
- 3 pcs boring units for boring top/bottom,
- 3 pcs boring units for boring from the side,
- 2 pcs boring units for boring from the ends,
- 6 pcs clamping cylinders,
- Delivery system return to operator, next to the machine.
The boring unit revolve 90° around its own axis, and the boring head itself, revolve 360° around its own axis.
Safety:
As safety for the operator is a keyword on all Dan-List machines, all safety guards which can be opened contain safety switches so if the operator accidently opens a safety guard during production the machine stops.
Or if a safety guard has not been closed properly after set up, the machine will not start.
All safety features are monitored in the PLC control, and can be seen on the touch screen, if any safety devices are activated.
It is impossible for the operator to access the machine in any way during production.
PLC:
The PLC contains many features, for example:
- On/off function for each boring unit,
- Time delay for cross drillings in order to avoid collision for horizontal and vertical drillings,
- Time controlled cleaning function of drilling,
- Programmable counter,
- Adjustable time for air blowing of drilled work pieces,
- Adjustable speed of infeed pusher,
- Touch screen in English ( also available in local language ),
- Individual requests,
- And more.
Please contact us for specifications.

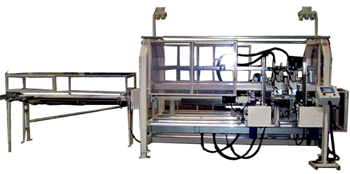

![Dan-List Dowel Boring Machine Model BA 2600](images/dowel_ba_2600.jpg)
Working Procedure:
The working cycle of Dan-List BA 2600 is the following:
- Place the work pieces in the magazine,
- Choose which drilling units should be activated and which should be deactivated,
- Start the machine,
- The work pieces are pushed into the machine and clamped pneumatically,
- In the first working station the work piece is then drilled and drilled from the ends and from the top,
- Then the work piece is moved to second working station where the remaining (if any) drillings from the top will be done,
- In third working station, the work piece is drilled from the side,
- Third working station is made directly on a conveyor and when finished the work pieces are returned to operator next to the machine on runners. ( individual delivery systems available ).
Capacity is typically from 600 – 800 work pieces per hour, depending on cross drillings and depth of drillings.
Working in three stations, means that each working station always have one work piece, so the machine can be constructed with a high capacity.
Set-up:
The set-up of the machine is easy and operator friendly.
The operator loosen two handles on the carriers for the boring units, slide the boring units to correct position and lock the handles again.
Each boring unit has a digital reader so correct position is easily found.
Individual requests for set up is also available, see other alternatives here.
Video Presentation:
For video presentation, please click here.
Dan-List BA 2600 is CE approved.
Technical data for Dan-List Dowel Boring Machine Model BA 2600 |
|
Capacity | 800/600 items per hour |
Length of items, max. | 2,600 mm |
Length of items, min. | 190 mm |
Boring depth, max. | 100 mm |
Consumption per boring unit | 1.1 kW @ 2,850 rpm |
Sliding mechanism | air with oil-damping |
Air pressure | 6 - 8 bar |
Air consumption | 0.5 litre per working cycle |
Machine length | 4,800 mm |
Machine width | 1,300 mm |
Machine height | 1,800 mm |
Machine weight | 2,500 kilos |
