Dan-List Dowel Boring Machine Model Autoset 3000

Dan-List Autoset 3000 is an efficient and reliable, Danish made fully automatic boring machine for tables tops of any kind. It has fully automatic set up through the touch screen with a memory of up to 99 different programs, which can be extended if needed.

The setup of the machine is 100% automatically done through the touch screen where each position of boring units, drilling depth, clamping cylinders, magazine etc., are entered and stored. Next time you need to run the same work piece, all you need to do is to enter the program number at the touch screen and the machine sets everything automatically with a precision of 1/10 mm. within 60 seconds.

Nothing needs to be set manually, apart from changing of drills.

This makes the Dan-List Autoset 3000 unique for the just in time production, where stock is kept to a minimum and only orders are manufactured. Just in time production requires many set ups during a working day. Set up and change over time is expensive and time consuming and therefore a set up time of less than 60 seconds is exactly what this kind of production needs.

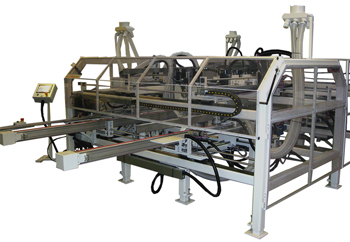

Dan-List Autoset 3000 consists of two heavy duty build machine frames connected with a conveyor. Dan-List Autoset 3000 has two working stations (one in each machine frame) which means that the machine will always work with two pieces which will be transported through each station with conveyors. The capacity varies and will be quoted exact with each quote of a new machine.

A full working cycle could for example be:

1. Enter the program number at the touch screen.
2. Dan-List Autoset 3000 sets up automatically and will be ready for drilling within 60 seconds.
3. Load the workpiece.
4. The work piece is taken automatically into the first working station where it will be clamped pneumatically and drilled from the top.
5. Then the piece is moved automatically to second station where it will be clamped pneumatically and drilled from the bottom.
6. Dan-List Autoset 3000 is a through feed version so an operator will need to unload the finished workpieces. Individual delivery systems can be agreed.

---

The operator language in the touch screen is normally English, but can be translated to local language also.

Minimum and maximum size of work pieces are individually determined.

Components used: The Dan-List Autoset 3000 machines are built to last. All components used are made in Europe of the highest possible quality and sub suppliers are well known companies in the industry.

Furthermore the boring heads and units are made in our own factory in Denmark, with a precision for each spindle of approx. 0.003 mm. This secures that our boring heads and units will last many many years even in a 24/7 production.

Should you wish further information, maybe a CD or a quotation without any obligation, please do not hesitate to contact us.

For video presentation, please click here.
