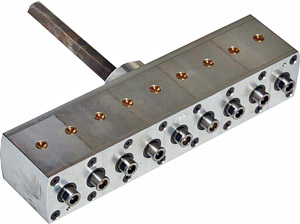

Dan-List Standard Dowel Boring Heads / Drill Blocks

The Dan-List standard dowel boring heads / drill blocks are all made in one of our own factories, on our top modern CNC machining centers with the highest precision and lowest possible tolerances. The tolerances for the spindles are less than 3/1000 mm.

We are proud to say that our dowel boring heads are among the longest lasting in the market, with some of the best and most reliable performances – no matter if the boring heads are used in one shift or in three shifts, 24/7. This has been highly appreciated by our customers for many years.

All components are made in Denmark and each finished unit is quality tested in order to reach the highest possible quality and to reduce down time to less than 0,5% at the customer. Our standard dowel boring heads are simply made for high volume production.

Each spindle is hardened and after the hardening process each spindle is precision ground.

The standard boring heads works with 2800 rpm as standard, but an inverter can be added to increase rpm up to 5.000 rpm.

Minimum distance between centres is 16 mm. ( lower requires a special boring head )

The standard boring heads are available with any number of spindles in line, and we always stock any boring head with center distances of 16, 17, 20, 21, 22, 25, 27 and 32 mm, as well as single spindles boring heads.

Quick locks can be adapted to the boring heads, but standard the boring heads are delivered with an 8 mm thread.

The Dan-List standard dowel boring head can be tilted 360 degrees so the boring heads can be used for any application where the holes are in line.

The Dan-List standard dowel boring heads fits all existing Dan-List machines and can also be prepared to fit different machines.
